FIRE DETECTION PANEL 20 ZONES FF-520   FIRE DETECTION PANEL 14 ZONES FF-394
FF 516

FIRE DETECTION PANEL 16 ZONES FF-516

C-TEC

FF 516

4-10 DAYS

Superb quality 16-zone fire alarm panel (microprocessor control) up to 20 bandwidth detectors, 24VDC mfpx expansion loom, in a metal cabinet. C-TEC, FF 516 (Compliant to BS 5839 Part 4)

Contact for offer   Call us at +30 210-6148000
  • Favorite
  • Compare
  • Tell a Friend
  • Description
  • Related Files
  • - Fully compliant with BS5839 Part 4.
    - Microprocessor based design.
    - Robust metal lid and metal back box.
    - Attractive easy-to-clean polycarbonate front label.
    - Four sounder circuits and head out (detector removed) fault indication provided as standard.
    - Expandable from 4 to 28 zones in 4 zone steps.
    - Heavy-duty base connections.
    - Ultra-bright, long-life LED indicators.
    - Built-in 24V power supply and battery charger.
    - End of line units included (one per zone).
    - Compatibility with virtually all known conventional smoke and heat detector ranges.
    - True three wire operation of sounder and detector circuits (Ov is common) for considerable cost savings on installation.
    - Separate indication of open circuit fault, short circuit fault, head out fault, sounder fault and battery/power supply fault.
    - Non-latching ‘class change’ sounder input, latching fire and non-latching fault outputs (available via optional MFPX expansion loom).
    - Fault buzzer mute facility.
    - Space available for the rated capacity of VRLA batteries.
    - Short circuit = fire facility (pre-1980 BS, no resistors in call points), selectable on a zone by zone basis for retro-installations.
    - Non-latching zones facility for cross connection to other panels.
    - True battery monitoring circuit.
    - Wide range of engineer facilities including one man detector test, sounder walk test, sounder isolate, sounder delay and auxiliary isolate.
    - Easy to follow installation instructions and log book.
    - Up to eight two-wire repeaters with full external control (except isolate) per system (requires one FF596T Repeater Transmitter PCB fitted at the main panel).
    - Multilingual variants available (subject to quantities).

  •   FF 516 (525.33 kb)

Related Products

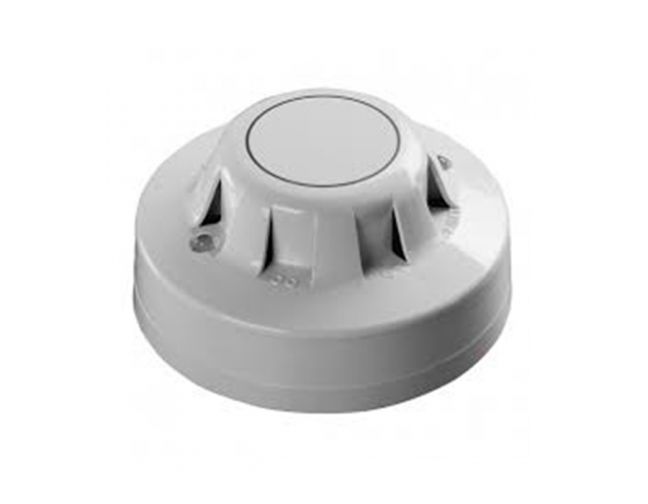

PHOTO-ELECTRONIC FIRE DETECTOR - CONVENTIONAL FIRE DETECTION BF316Z
