CONTROLLERS - POWER SUPPLY

The AC-215IP-B(TCP/IP) access control and automation panel feature 2 readers, 4 outputs, and 4 inputs in a compact high-quality DIN housing that can be easily installed into the ME-1015 power management enclosure, or can be mounted in custom enclosure.

-2-Door (2-Reader) topology, networked up to 1023 panels to one AxTraxNG Server.
-Full online/offline operation. 30,000 users, 20,000 event history.
-TCP/IP connectivity available with AC-215IP models.
-Advanced event action logic engine.
-System management performed on the AxTraxNG PC Client/Server Management Software.
-NOTE: The MD-14U converter cable is required for connecting the panel to a PC via RS-485 serial link (sold separately).

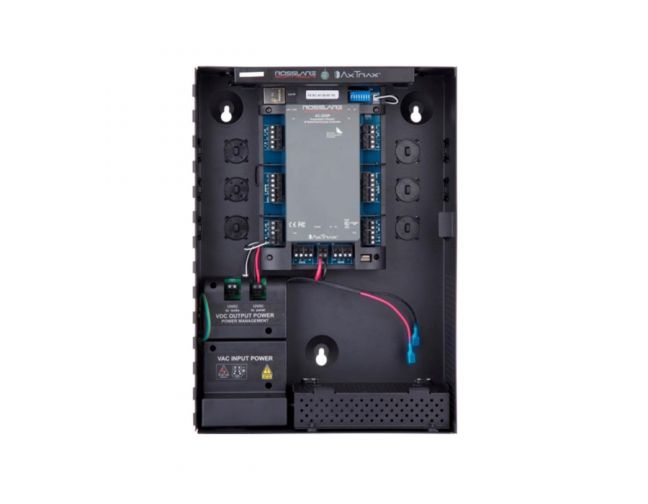

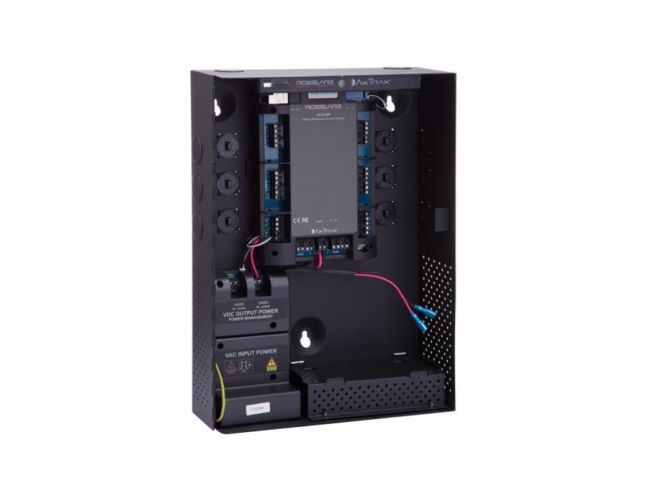

AC-215IP installed in ME-1015 with Type F plug power cable...

The AC-225IP-BE is professional grade access controller that have advanced online and offline logic capabilities, using non-volatile memory in case of total power loss.

-2-Door (2-Reader) topology, networked up to 1023 panels to one AxTraxNG Server.
-Full online/offline operation.
-30,000 users, 20,000 event history.
-Expandable with MD-IO84 8-Input / 4-Output expander or MD-D02 2-door expander.
-TCP/IP connectivity available with AC-225IP models.
-Advanced event action logic engine.
-System management performed on the AxTraxNG PC Client/Server Management Software.
-NOTE: The MD-14U converter cable is required for connecting the panel to a PC via RS-485 serial link (sold separately). Pre-installed in the ME-1015 Power Management Enclosure.

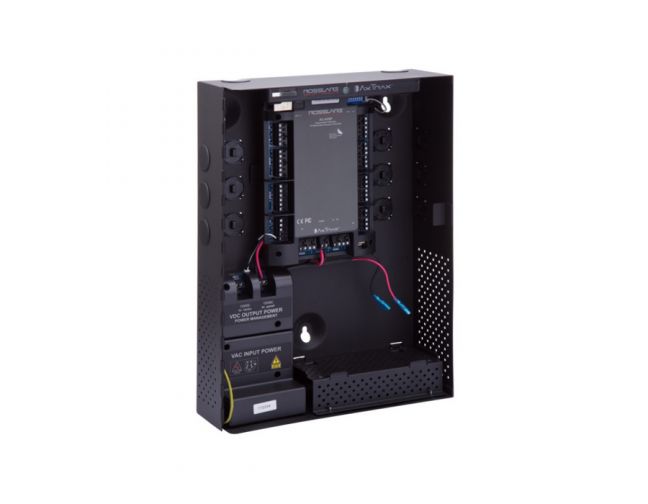

AC-225IP installed in ME-1015 with Type F plug power cable...

High quality and reliable local network controller.
4-Door (4-Reader) topology, networked up to 1023 panels to one AxTraxNG™ Server. Full online/offline operation. 30,000 users, 20,000 event history.
Expandable with MD-IO84B 8-Input / 4-Output expander or MD-D04B 4-Door expander. TCP/IP connectivity available with AC-425IP models. Advanced
event action logic engine. System management performed on the AxTraxNG PC Client/Server Management Software. NOTE: The MD-14U converter cable
is required for connecting the panel to a PC via RS-485 serial link (sold separately). Pre-installed in the ME-1015 Power Management Enclosure.

AC-425IP installed in ME-1015 with Type F plug power cable...

A state-of-the-art 6-door (4 Wiegand, 2 OSDP) networked access controller. Comes with one onboard expansion slot and can be further expanded by connecting up to 12 expansion boards via OSDP (one AC-825IP can control up to 56 doors). Each AC-825IP access control unit (ACU) supports 100,000 users, 500,000 event log entries (FIFO), 6 doors (readers), each with 2 inputs and 1 output on board. The AC-825IP includes AES128-bit encrypted communication via TCP / IP to an AxTraxNG server and has two additional RS-485 busses (OSDP bus and G bus). Compatible with ME-1515 Power.

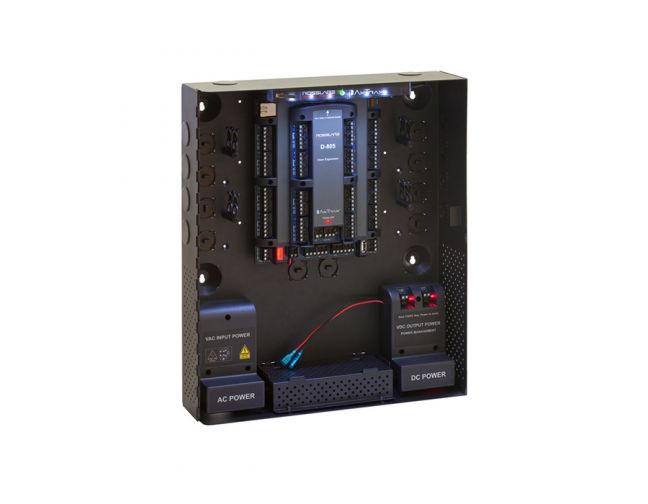

AC-825IP installed in ME-1515 with Type F plug power cable....

Local control unit of one (1) or two (2) door locks (IN / OUT, IN / IN), 2 card reader connections, up to 256 local controllers per PC, OFFLINE, 5000, 4 inputs - 4 outputs, connection via RS-232, RS-485, TCP-IP, in a metal cabinet. ROSSLARE, AC-215....

Local control unit IN / OUT, IN / IN, 2 reader connections, up to 1000 local controllers on one PC, OFFLINE, 30000 users, built-in power adapter, charger, 4 inputs - 4 outputs, expandable to 12 inputs and 8 outputs, fully programmable and connected via RS-232, RS-485, TCP-IP, in a metal cabinet. ROSSLARE, AC-225....

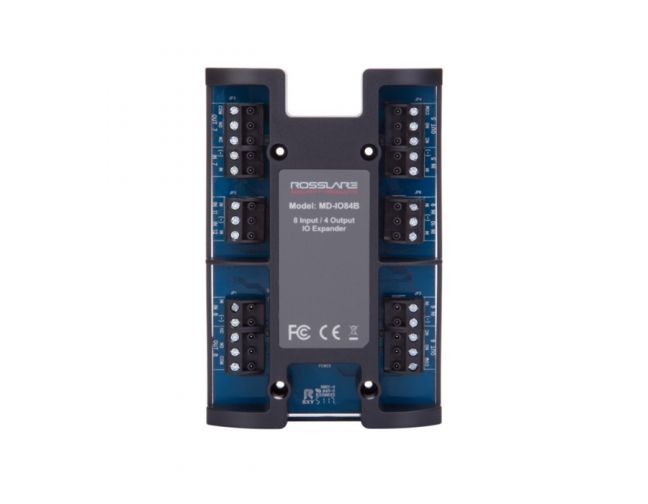

This expansion board adds an additional four relay outputs and eight supervised inputs to the access control panel. The host access controller has complete control over the additional inputs and outputs of the MD-IO84B expansion board. The inputs and outputs can be configured using an access control software system such as Rosslare AxTraxNG™. The software system also configures the MD-IO84B's input connection topology.
Once connected to the system, these IO devices can allow you to scale and expand your system and by using AxTraxNG™ management you can program extended access control features, adding more automation capability to the your system....

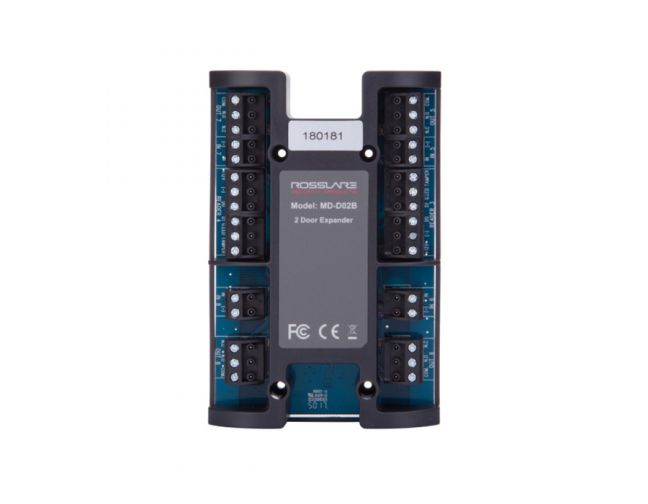

The expansion board adds an additional 2 Wiegand reader ports (supports keypads & RFID and Biometric) , 4 relay outputs (5 Amp 30V NO/NC FormC) and 4 supervised inputs with EOL to the access control panel.
As a result, an access control panel with an MD-D02B expansion can support a total of four readers and four door panels. In addition, it is possible to add any keypad or biometric reader that supports the Wiegand or Clock & Data transmission formats....

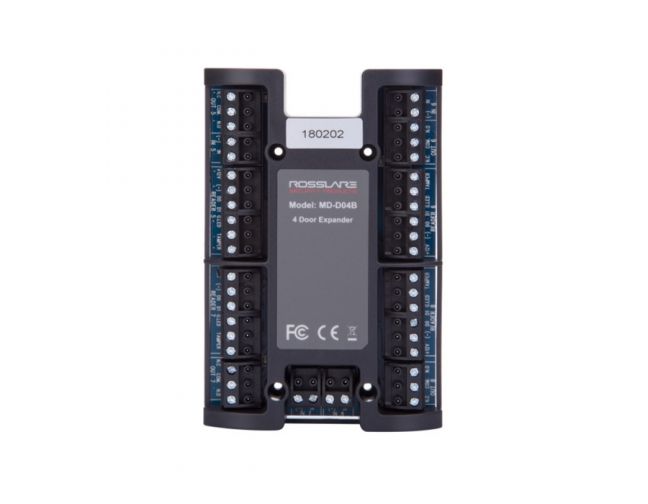

The expansion board adds an additional four reader or keypad inputs, four relay outputs and four supervised inputs to the access control panel.
As a result, an access control panel with an MD-D04B expansion can support a total of eight readers and eight door panels.
In addition, it is possible to add any keypad or biometric reader that supports the Wiegand or Clock & Data transmission formats....

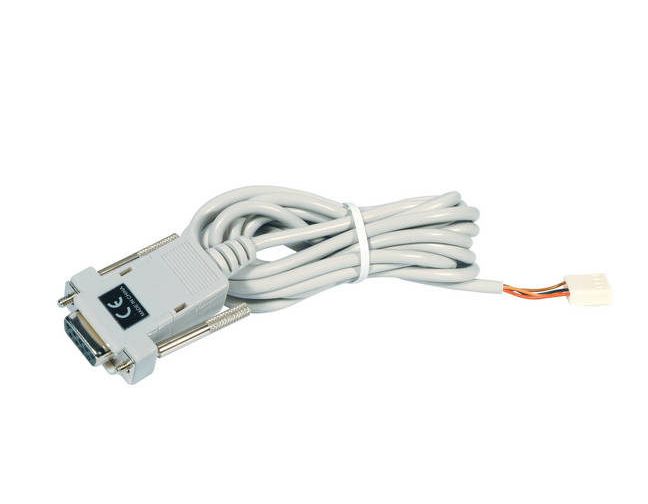

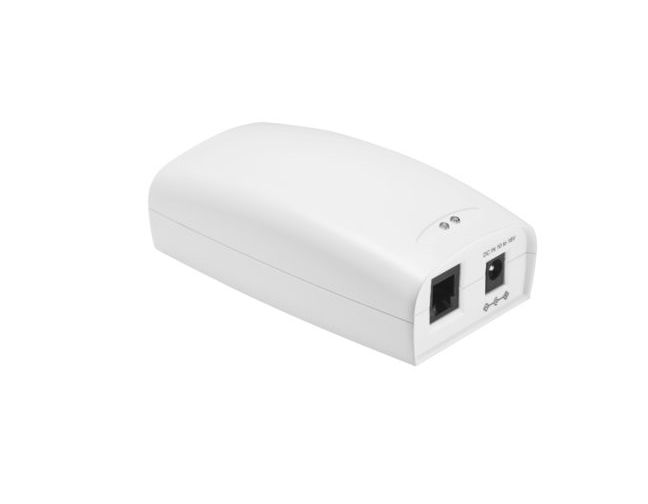

An excellent quality network converter that connects to various Rosslare tables and devices on the computer and network. D-9 slot for RS-232 port. It comes equipped with a special plug for AC-215/225 on a communication port. ROSSLARE....

The MD-N32 SmartScapeTM Serial to Ethernet Gateway is a high-tech interface for data interfacing with a PC software interface used to connect RS232-based serial devices to a local area network (LAN) system that allows the serial device to send and receive digital data and messages from a computer or anther device in the LAN. ROSSLARE....

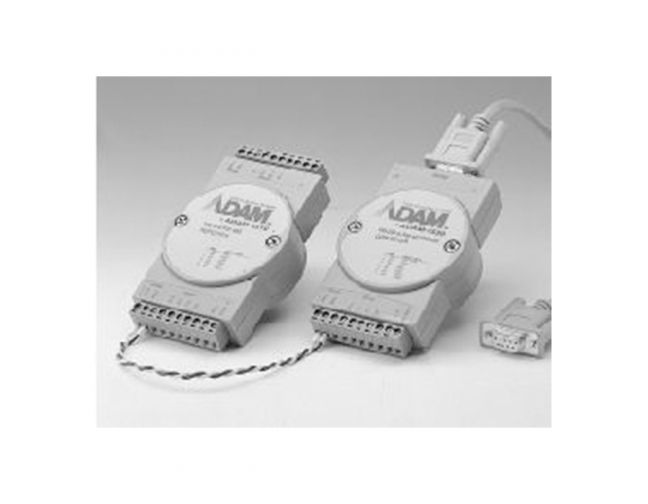

Excellent quality and reliability RS485 network inverter to RS232 with optical isolation, ADAM 485...

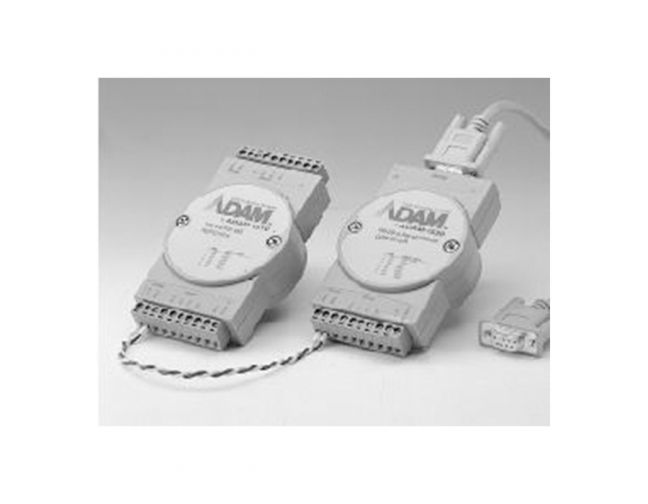

Excellent quality and reliability Ethernet network converter to RS232 with 2 Serial Port, ADAM-4579...

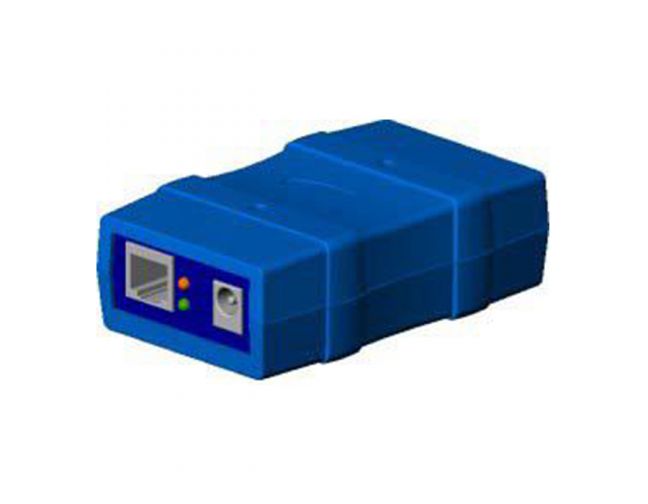

Reliable control for direct TCP / IP networking by providing a bridge between 10BaseT Ethernet and RS232. TIBBO TECHNOLOGY....

The CP-R25 is a desktop MIFARE cards and fingerprint programmer for MIFARE 1K and RFID 4K proximity cards and tags. The CP-R25 makes it easier to manage MIFARE fingerprints and cards and can help develop and control the application, including access control, entry, time and presence....
