CARD READERS

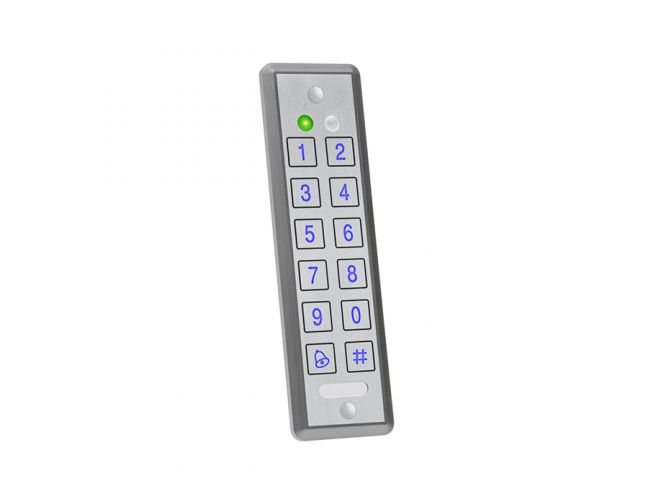

Wall card reader with keyboard (card only or code only or card / code combination), metal, super-slim, optical tambour, waterproof, IP68, suitable for outdoor or indoor installation....

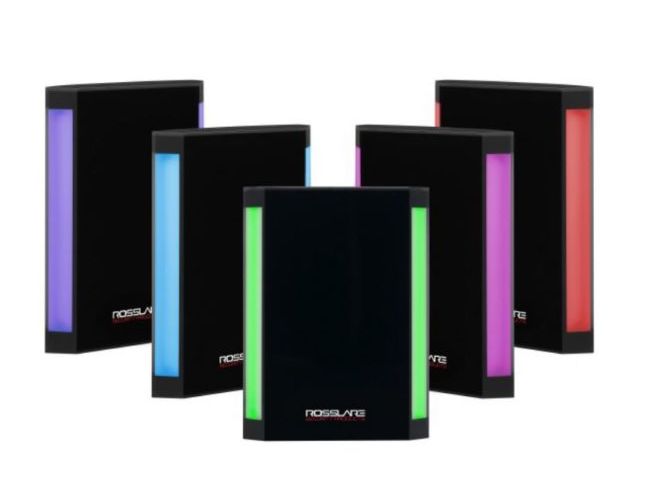

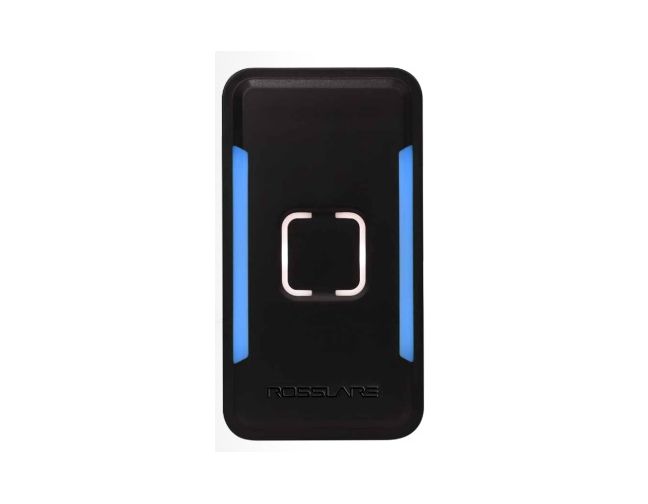

The AY-K35 is justly called the Multi-Smart reader! It features multi-technology and OSDP secure channel communication to bring more versatility, scalability and security to physical access control � without the need to replace existing credentials.

The reader is now more protected than ever. It is dust and water resistant, including vandal proof and anti-microbial properties to reduce the risk of contamination while increasing physical access control security....

...

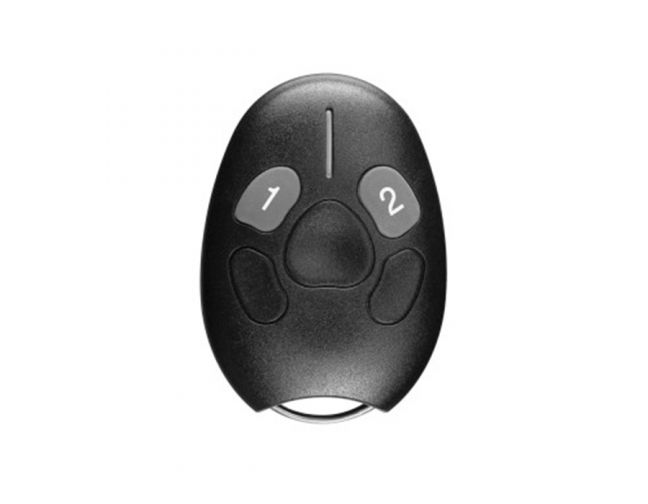

Quality and reliable two-channel SA-23-B2G transmitter with a 70 meter range for remote and easy access control for the AY-L23G receiver....

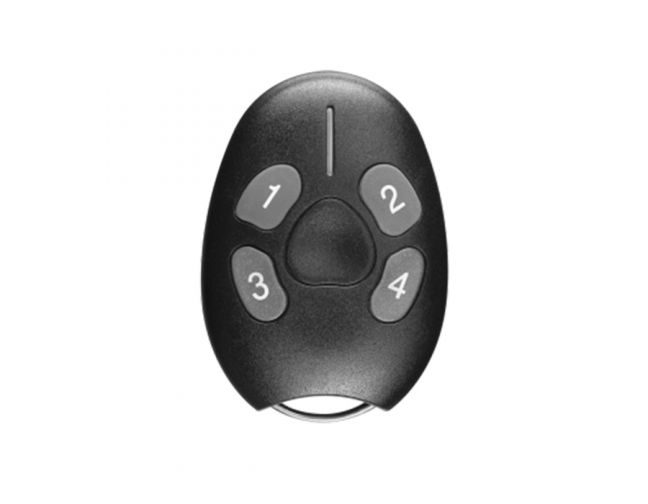

Quality and reliable four-channel SA-23-B4G transmitter with a 70 meter range for remote and easy access control for the AY-L23G receiver....

Quality and reliable two-channel SA-23-B2H transmitter with a 70 meter range for remote and easy access control for the AY-L23H receiver....

Quality and reliable four-channel SA-23-B4H transmitter with a 70 meter range for remote and easy access control for the AY-L23H receiver....

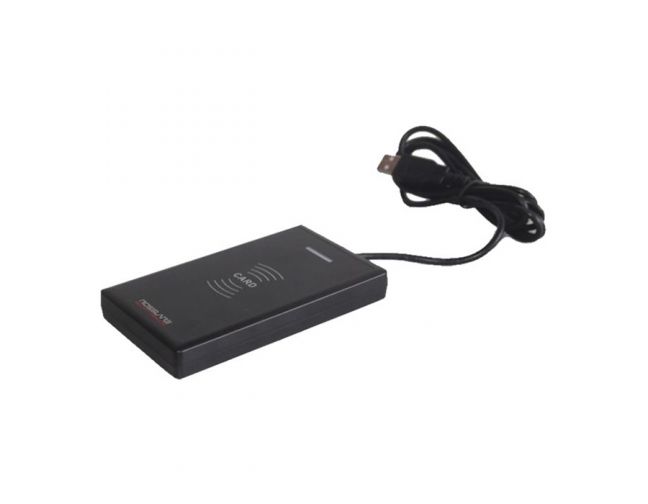

Desktop Enrollment Reader for Rosslare UHF ISO 18000-6C (EPC GEN2) credentials. Plug and Play operation with USB interface, no additional power supply required. Connects easily to AxTraxNG client for credential enrollment....

The AY-U920BT is a new series of ISO18000-6C (EPC GEN2) compliant UHF reader with 12 meter and 6-meter range, respectively, with selectable single card or multi-credential read modes. The reader also feature support for Rosslare�s CSN SMART� myBLE-ID Bluetooth credentials for Android and iOS. The reader can output UHF and BLE ID data via Wiegand (26-bit default), OSDP, and RS-485 outputs. Suitable for outdoor use IP65 rated.
The AY-U915BT can be configured to read up to 70 credentials within the read range, and to buffer the output to the host controller in Wiegand 26-Bit to 64-Bit or SIA OSDP.
The reader comes with an installation bracket kit for pole mounting, a 5-m-long 10-wire cable, and a switching power supply. The RS-485 OSDP wiring allows a maximum cable distance of 1000 m (3280 ft), and the Wiegand wiring allows a maximum cable distance to the host controller of 150 m (492 ft).

MAIN FEATURES

- MD-81 functionality built in
- Wide range of UHF credential form factors
available
- UHF read range up to 6 m (19 ft)
- Supports Bluetooth communication for Rosslare BLE-ID� smartphone apps for Android and iOS
- Can read up to 10 credentials per second or
down
to 1 credential per second (programmable)
- IP65 for indoor and outdoor use
- RGB LED used for operational indication...

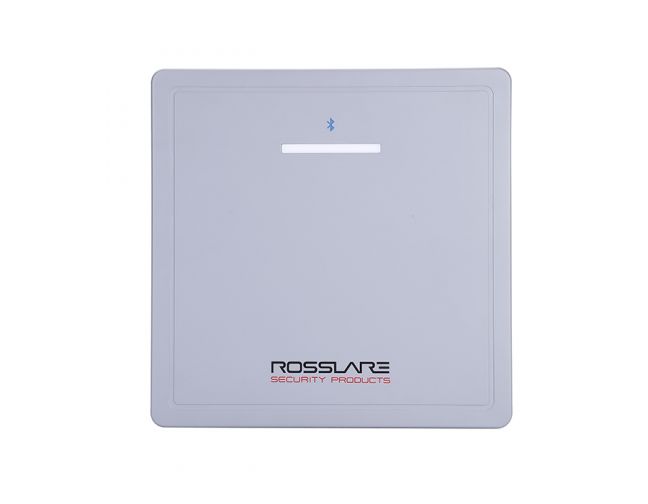

The AY-U920BT is a new series of ISO18000-6C (EPC GEN2) compliant UHF reader with 12 meter and 6-meter range, respectively, with selectable single card or multi-credential read modes. The reader also feature support for Rosslare�s CSN SMART� myBLE-ID Bluetooth credentials for Android and iOS. The reader can output UHF and BLE ID data via Wiegand (26-bit default), OSDP, and RS-485 outputs. Suitable for outdoor use IP65 rated.
By reading both UHF and Bluetooth (BLE), the reader enables system integrators to develop new solutions, such as multi-factor authentication. The AY-U920BT can be configured to read up to 70 credentials within the read range, and to buffer the output to the host controller in Wiegand 26-Bit to 64-Bit or SIA OSDP.

MAIN FEATURES

- MD-81 functionality built in
- Wide range of UHF credential form factors
available
- UHF read range up to 12 m (39 ft)
- Supports Bluetooth communication for Rosslare
BLE-ID� smartphone apps for Android and iOS
- Can read up to 10 credentials per second or down to 1 credential per second (programmable)
- IP65 for indoor and outdoor use
- RGB LED used for operational indication...

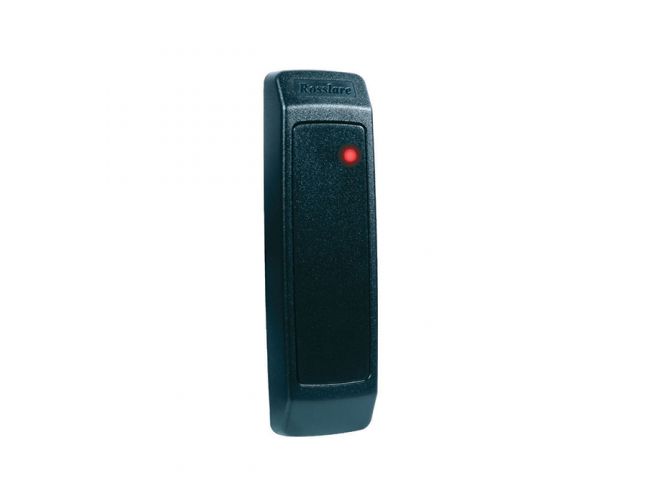

Inductive card reader, (Clock & Data), of excellent quality, has a light and optical tamper, anti-vibration and waterproof, suitable for outdoor or indoor installation....

Excellent inductive card reader, (Clock & Data), witch has a light and optical tamper, anti-vibration and waterproof, suitable for outdoor or indoor installation....

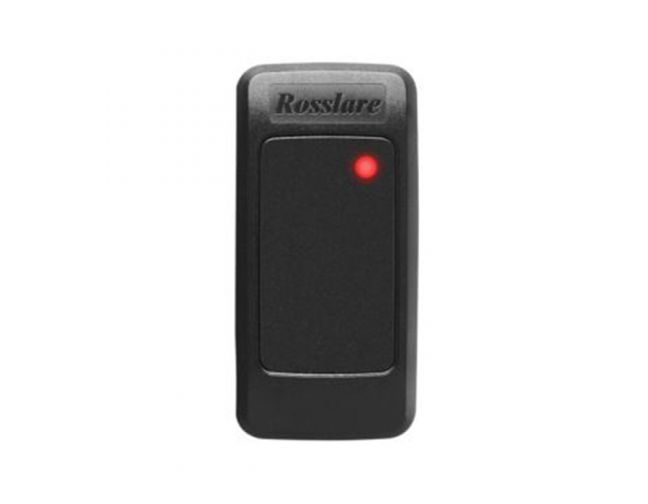

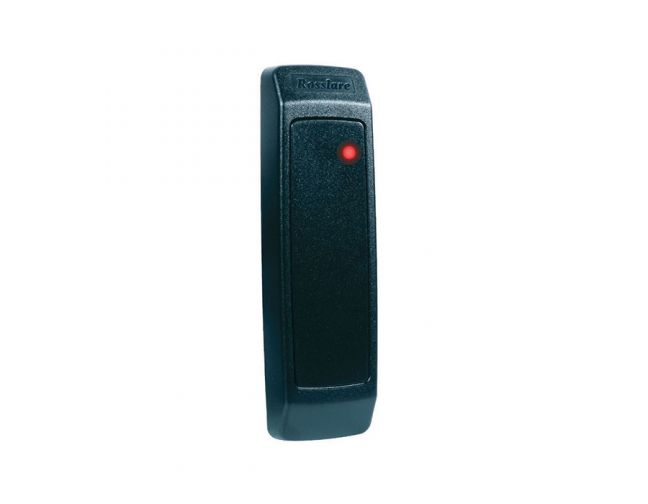

The AY-R12 is an RFID proximity card reader and is installed to use access control systems. It is compatible with any controller that supports the 26-bit Wiegand protocol (AC-215/225/425/525 panel, AC-015, AC-020 and AC-115 controllers.
but anywhere with the AxTraxNG software). It is also compatible with other third-party controllers that support the same entry protocol (Wiegand)....

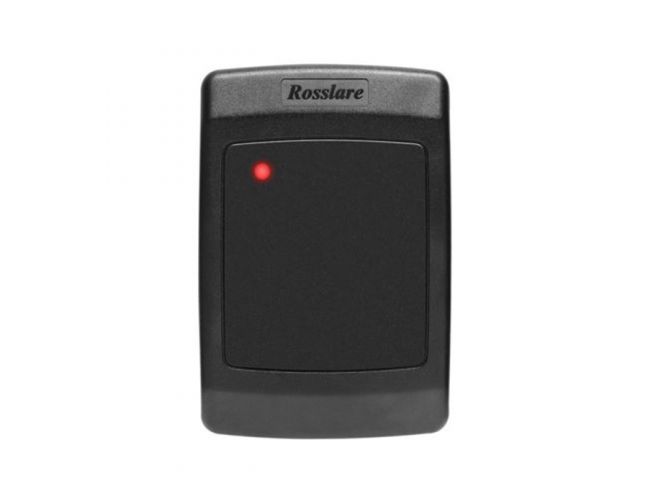

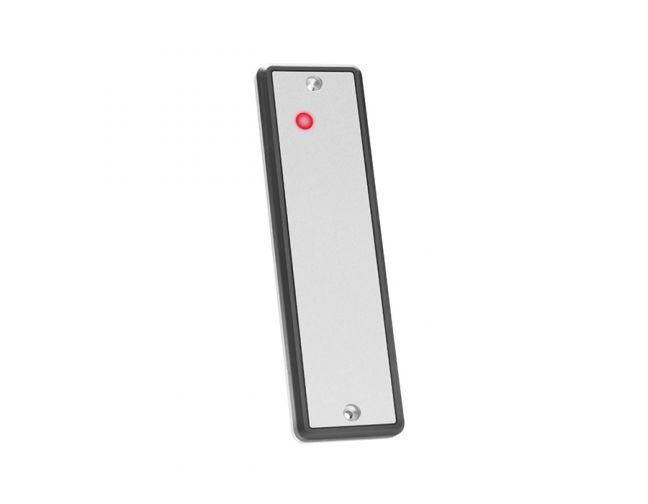

The AY-E20 is an ultra-slim, multi-format RFID reader that can be installed for use with access control systems. The unit is resistant to vandalism, waterproof and suitable for indoor or outdoor use....

The AY-L23G is an excellent quality, external Long Range RF reader that acts as a receiver. It is compatible with the transmitters of the Rosslare SA-23 family. When the AY-L23G receives a control signal from the wireless transmitters SA-23, it outputs the ID for the controller and controls the relay function according to the remote command....

The AY-L23H is a very reliable, external Long Range RF reader that acts as a receiver. It is compatible with the transmitters of the Rosslare SA-23 family. When the AY-L23H receives a control signal from the wireless transmitters SA-23, it outputs the ID for the controller and controls the relay function according to the remote command....
