SWITCH

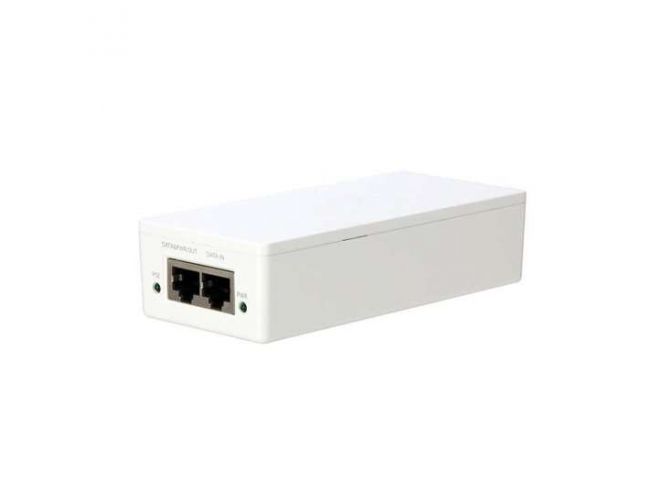

Quality switch with indicator status LEDs and PoE light.

� Support PoE for Hi-PoE 60W high power consumption speed
dome
� Indicator status: power (normal power on), PoE (normal
power supply)
� Cooperate with PoE Extender (PFT1300), able to cascade
level 2 PoE Extender, connect to 3 IPC (power consumption
<=8W), max transmission distance 300m
� Installation mode: wall mount...

Quality switch with LEDs for power and operation

� Supports IEEE802.3af, IEEE802.3at standard
� Conform IEEE802.3, IEEE802.3u and IEEE802.3ab standards
� Wide temperature design: -10�C~55�C...

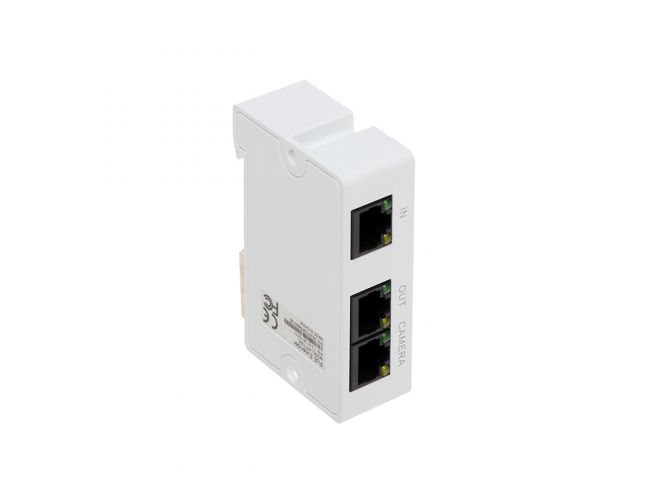

Switch ideal for use in expansion cameras and recorders

� Support passive PoE cascade power supply and Ethernet
data exchange
� Support IEEE 802.3af/at standard power supply IP Camera
� Cooperate with High PoE Midspan (PFT1200), able to
cascade level 2 PoE Extender, connect to 3 IPC (power
consumption <=8W), max transmission distance 300m
� 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M
supply power for IP Cam; 1*RJ45 10/100M supply power for
the next extender
� Installation mode: junction box internal mounting, DIN rail
mounting...

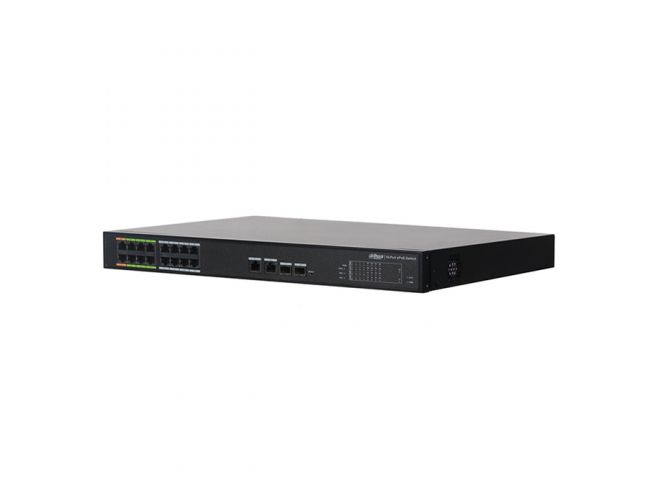

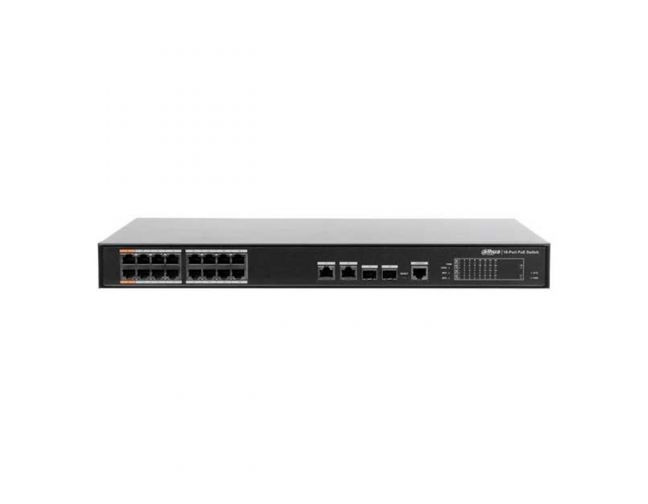

Extremely useful and quality switch that has 16 PoE ports and 8 ePoE ports capable of delivering PoE transmission to over 800m of Ethernet cable at 10Mbps. It also supports PoE and PoC power supply technology, or has a very simplified construction and wiring.

� Supports long distance PoE transmission up to 800m with
ePoE technology of Dahua
� Layer-two web managed ePoE switch
� Port 1-8 support three self-adaptive transmission modes
which are IEEE, E100 and E10
� Port 1-8 support both twisted-pair transmission and coaxial
cable transmission
� Support web management: port management, 802.1Q
VLAN, STP/RSTP, LACP, 802.1X, QoS
� Support PoE management, Green PoE, Legacy Support
� Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards...

Excellent recorder for demanding use with 2-level PoE management and PoE transmission up to 250 meters.

� Layer 2 management PoE switch
� PoE budget: 360W
� Support PoE, PoE+, Hi-PoE
� 'Orange port' support Hi-PoE, can be used with the PoE
extender (PFT1300)
� 250 meters long distance PoE transmission
� PoE management, PoE Setting/Event Statistics/Green PoE
� Search and upgrade via ConfigTool
� Support Web management
� High lightning protection design
� Non-blocking video transmission...

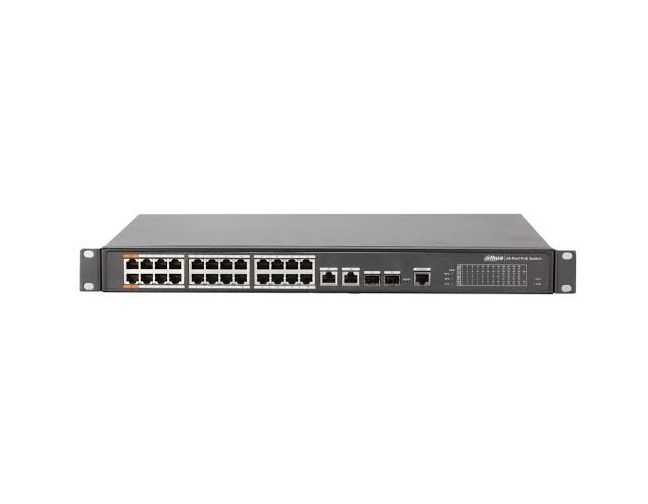

Reliable switch for demanding use, with 2-level PoE switching management and PoE transmission up to 250 meters.

� Layer 2 management PoE switch
� PoE budget: 190W
� Support PoE, PoE+, Hi-PoE
� 'Orange port' support Hi-PoE, can be used with the PoE
extender (PFT1300)
� 250 meters long distance PoE transmission
� PoE management, PoE Setting/Event Statistics/Green PoE
� Search and upgrade via ConfigTool
� Support Web management
� High lightning protection design
� Non-blocking video transmission...

An excellent quality switch that supports PoE transmission over a distance of up to 800 meters, as well as a two-level PoE proprietary printer.

� Supports long distance PoE transmission up to 800m with
ePoE technology of Dahua
� Two-layer industrial PoE switch
� MAC auto study and aging, MAC address list capacity is 8K
� Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
� Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
� Industrial wide temperature design...

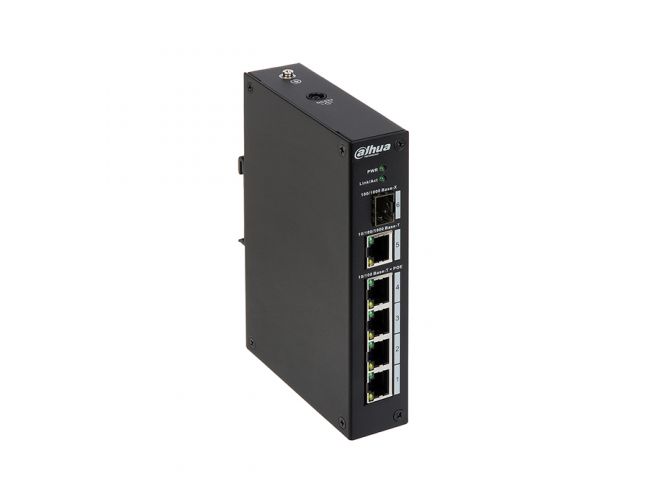

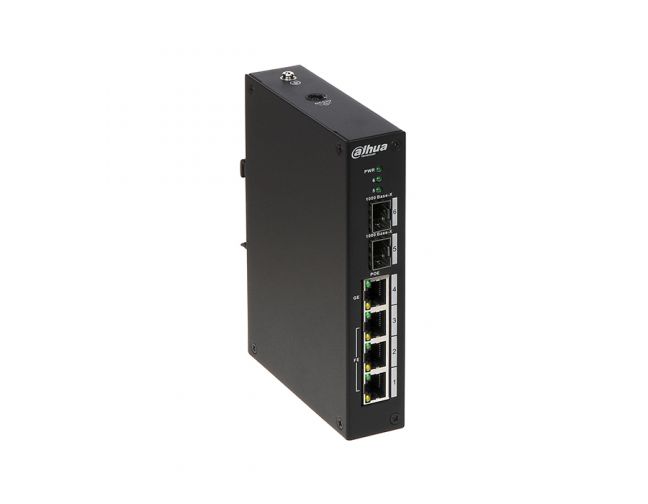

Qualitative and reliable four-door switch, without PoE management, for special applications.

� Two-layer unmanaged PoE switch
� Cascade can be realized via SFP fiber port
� MAC auto study and aging, MAC address list capacity is 8K
� Support IEEE802.3af, IEEE802.3at, Hi-PoE standard
� Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
� Industrial wide temperature design...

An excellent switch that is equipped with eight-door fast Ethernet and supports reliable PoE transmission up to 250 meters.

� Layer two commercial switch
� Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
� MAC auto learning, aging, MAC address capacity is 2K
� Supports MDI/MDIX self-adaptation
� Support PoE, PoE+, Hi-PoE
� Adopts metal enclosure...

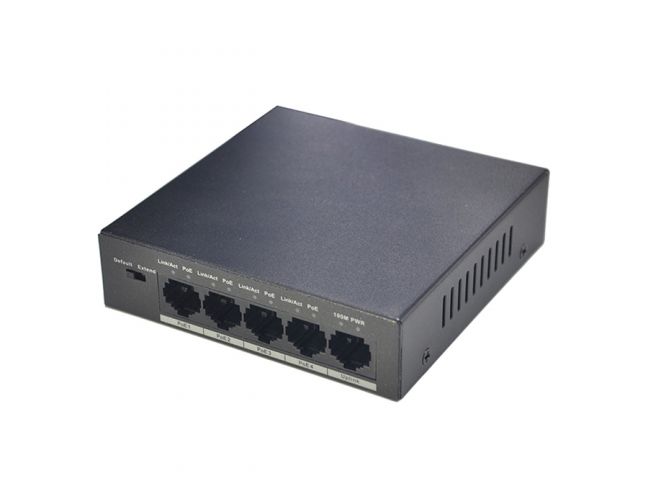

Reliable and quality two-level PoE Ethernet switch with 250 meters of maximum data transmission distance.

� Two-layer PoE Ethernet switch
� MAC auto study and aging, MAC address list capacity is 1K
� Support IEEE802.3af, IEEE802.3at standard
� Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards
� Default Mode: The device works as a general switch and all
ports support 10/100Mbps auto-negotiation.
� Extend Mode: VLAN isolation is enabled. Ports 1-4 will be
isolated respectively (10Mbps auto-negotiation), but they can
communicate with the Uplink port. Besides, the transmission
distance of power and network data is up to 250m....

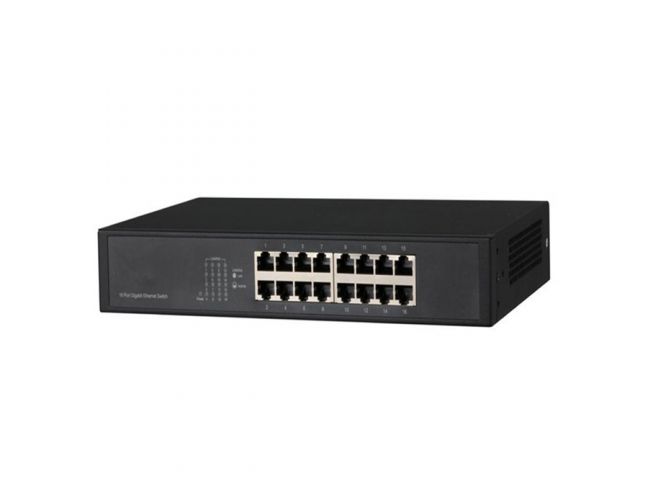

Excellent quality second-level switch for demanding applications.

� Layer 2 unmanaged access switch
� All gigabit Ethernet ports
� Lightning protection
� Plug and play
� Adopts metal enclosure
� Good heat dissipation...

Extremely reliable two-level switch for leveling applications.

> Layer 2 unmanaged access switch
> All gigabit ethernet ports
> Lightning protection
> Plug and play
> Adopts metal enclosure
> Good heat dissipation...
