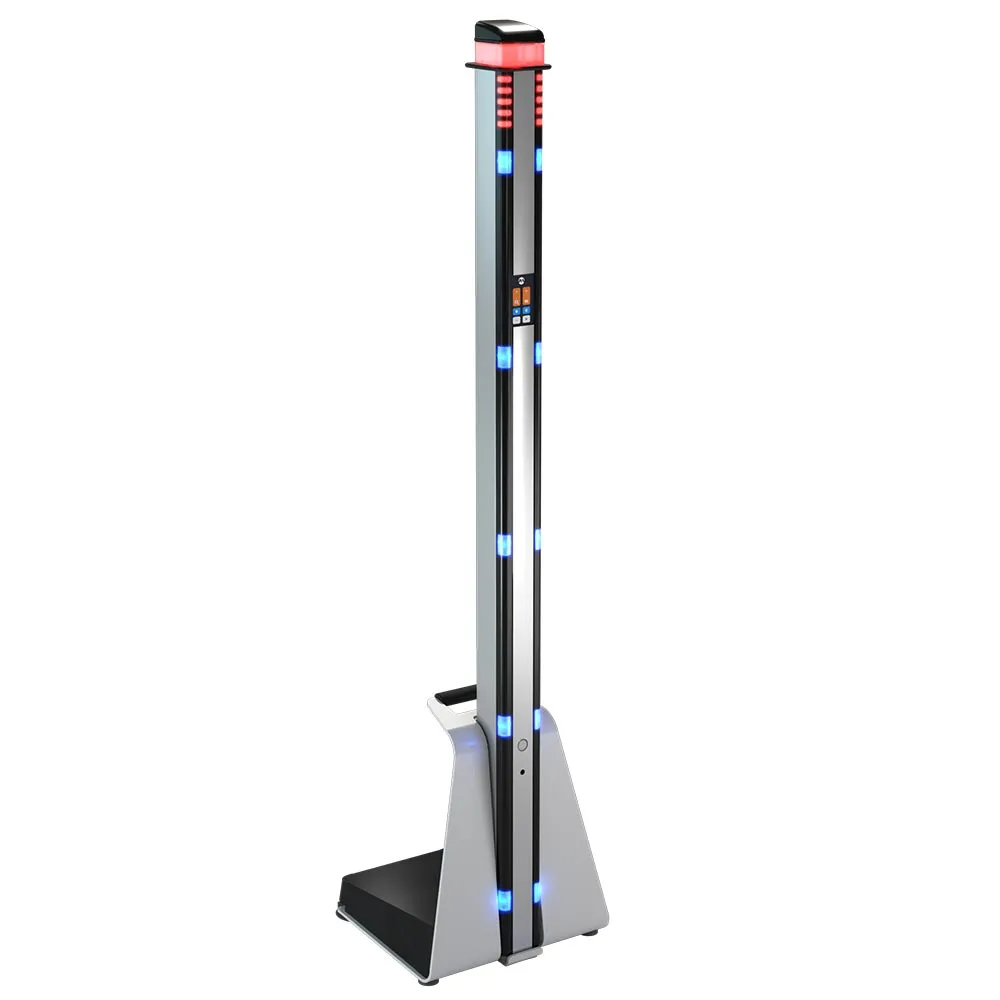

Metrasens Ultra – Advanced Magnetic Detection Column
Metrasens Ultra is an advanced magnetic detection column designed for fast, non-invasive screening of people in security-sensitive environments. It can help detect risk items such as weapons, metallic objects, and small electronic devices, while allowing people to move through the area efficiently. Its portable or fixed installation options, five-zone indication system, adjustable sensitivity, and remote connectivity make it suitable for courts, prisons, public buildings, police facilities, and other controlled-access locations.
-
Metrasens UltraMagnetic detection column for controlled areas
Metrasens Ultra is a people-screening detection system for entrances and high-security environments. It uses advanced sensor technology to help identify items of interest, such as metallic objects, weapons and small electronic devices, without requiring physical contact with the person being screened.
Non-invasive screening
People screening from a safe distance, without physical contact and without disrupting the flow of entry.
5-zone location
LED indicators assist the operator in identifying the area where the object is detected.
Flexible installation
Supports portable, freestanding or wall-mounted installation, according to site requirements.
System integration
Management and integration capability with third-party systems through Ethernet and API.
ApplicationsMetrasens Ultra can be used in facilities where reliable people screening, restriction of prohibited items and smooth access flow are required.
Courts
Screening of visitors and personnel at security entrances.
Correctional facilities
Detection of items that are not permitted inside the facility.
Public buildings
Entrance control in buildings with increased security requirements.
Police facilities
Use in controlled-access, custody or waiting areas.
Technical characteristicsProduct informationFeature Information Sensor unit dimensions 9.4 cm x 180.5 cm x 10.6 cm Weight Sensor unit: 10 kg / Base: 11 kg User interface 4.3" colour touch screen with PCAP touch technology Connectivity Ethernet, dry contact relay, 24V AC / 40V DC Audible alert Variable volume and tone controls Visual alert 360° green and red alert indicator, 5 LED signal-strength levels, 5 LED zone-location levels Power Integrated Li-Ion battery, 24V DC charger or Power over Ethernet (PoE) Battery runtime 16+ hours operation / approximately 3 hours charge time Operating temperature -20°C to +60°C Relative humidity 95% non-condensing IP rating IP65 System management Published API for third-party integrations Mounting options Portable base, freestanding installation or wall-mounted installation Metrasens Ultra is suitable for facilities that require a combination of detection accuracy, flexible installation and efficient people flow, with configuration options according to the needs of each site.Request a quoteMetrasens UltraFor technical study, configuration options and installation quotation, contact us.
