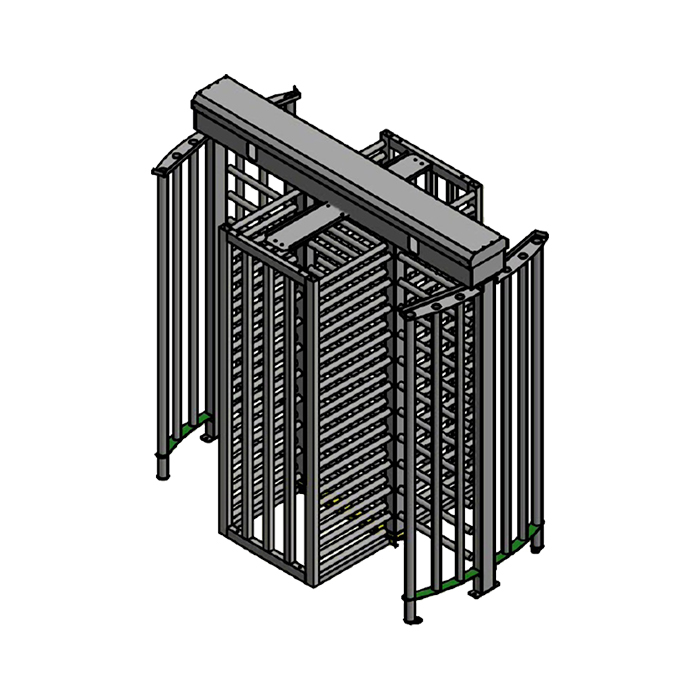

TOURNSTILE 4 WINGS DOUBLE FULL-HEIGHT PAINTED OR INOX T-2500D
T-2500D Double fullheight turnstile is designed to provide higher level of security for locations requiring strict access control, even without security staff on the site. While it is securing the premises, it is totally safe for the users at the same time.
T2500D Double can be installed in the entrance of construction sites, factories, stadiums, ministries, prisons and any locations where security is a high priority.
-
SPECIFICATIONS
Control /Operation Voltage :
24VDC +-%20
Power Consumption :
30W
Tripod Locking :
With 24 V DC selenoids; lock when the selenoids are pulled.
Tripod Position Dedection :
Direction of the tripod position with two microswitches.
Motion Control :
When the cycle starts to one direction, the reverse is blocked and after a half turn the rest of the cycle is completed, automatically and smoothly by a hydraulic shock absorber.
Installation :
Simple & easy installation
Operation Temperature :
- 20° C - + 70° C
Indicators :
LED on both sides
Dimensions :
1320x2118x2269 mm
Weight :
500-550 Kg
Optional Accesories :
Remote control, button unit,card reader,biometric reader.
