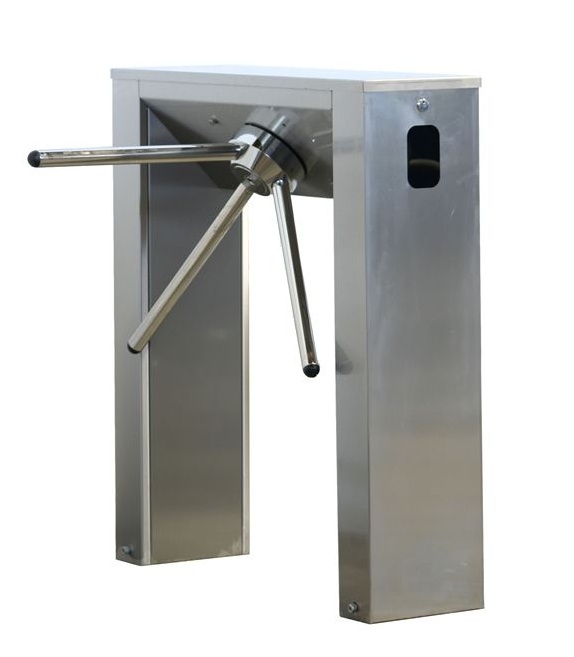

TURNSTYLE 3 WING ????? ?250

Excellent turbine type turnstyle rotor with stainless body ideal for controlling access to your space.

MAKIM T230 3? MOTORIZED VIP TURNSTILE

Stainless steel body

Dimensions (body) 230 x 990 mm

Dimensions (flap) 500 mm

Thickness (glass) 15 mm

Weight 35 kg

Two-way operation

Coil lock 24VDC

Electronic control board with programming functions...

Single Coated turnstyle with electrostatic coating (optional: 2mm stainless steel). Hydraulic, silent immobilisation and vibration absorbing system.
It has 3 standard 470 mm aluminum bars (available material options: steel, wood, acrylic, painted steel). Locking system, anti-corrosion protection, available for indoor / outdoor installation (with special housing), allows two-way passage (for one person at a time), anti-roll bar, emergency release (from panic button activation or signal fire), authorized passage and intermittent flow for strict control of the incoming. It also has light indications of stop and direction at the top and bottom.
Flow rate min. 12 - max. 30 persons / minute. Operation at temperatures from -17 � C to + 68 � C, compatible with all access control systems, operation and metal detecting systems.
Power supply 220V AC / 50Hz, 24-27V DC. Dimensions: 450x1000x300 mm (+ 470mm aluminum bar), Weight: 36 kg.
Optional: Automatic / Manual Emergency Bar Cut, Countermeter (manual or electromechanical), manual control unit (with infrared or cable), earthquake sensor, alarm unit, card readers, computer interface module, dividers, , etc. OZAK ...

Metal, single electric turret waist height, stainless steel coating. (450-900mm), stainless steel frame & plexiglass (option: glass) inside, 2 ways, anti-frost protection system, anti-corrosion protection, interior and exterior installation, shutdown mechanism, shutdown mechanism, shutdown & alarm signaling in case of system break during transit, free passage in one direction in case of emergency, authorized passage, operation at temperatures from -15 � C to + 65 � C, compatible with all access control systems, 220VAC / 50HZ, dimensions 500x955x300mm (+ 450-900mm fin), weight: ~ 40kg (Options: Free Pass, Card Readers, Limitor, Heat Positive, Side Passing Indicators, Counter, Communication RS232-485, TCP-IP), OZAK, 505-E Cr.- Single....
