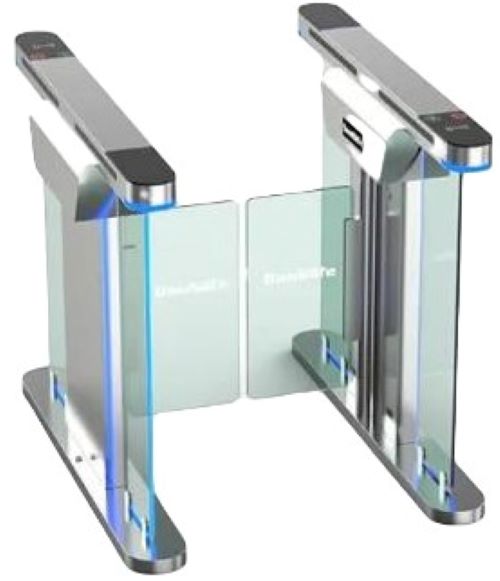

The Waterproof DS218 Optical Swing Turnstile is designed with a sleek 120mm cabinet, making it an elegant solution for access control. It is equipped with white tempered glass side panels adorned with dazzling LED lights, enhancing the aesthetic appeal of any site. The turnstile is waterproof with an IP65 rating, ensuring durability against water and rain, making it suitable for both indoor and outdoor environments. The black tempered glass card panel is robust and resistant to scratches. This model features a super slim design, providing a cozy visual effect, and the cabinet's lighting changes between red, green, and blue colors. The turnstile offers a variety of advanced security features, including anti-intrusion and anti-reverse functions, and supports integration with third-party access control systems.

Main characteristics

        Model No.: DS218

        Brand: Daosafe

        Framework Material: 304 Full Stainless Steel + tempered glass side panels with dazzling LED light

        Arm Material: Plexiglas - transparency

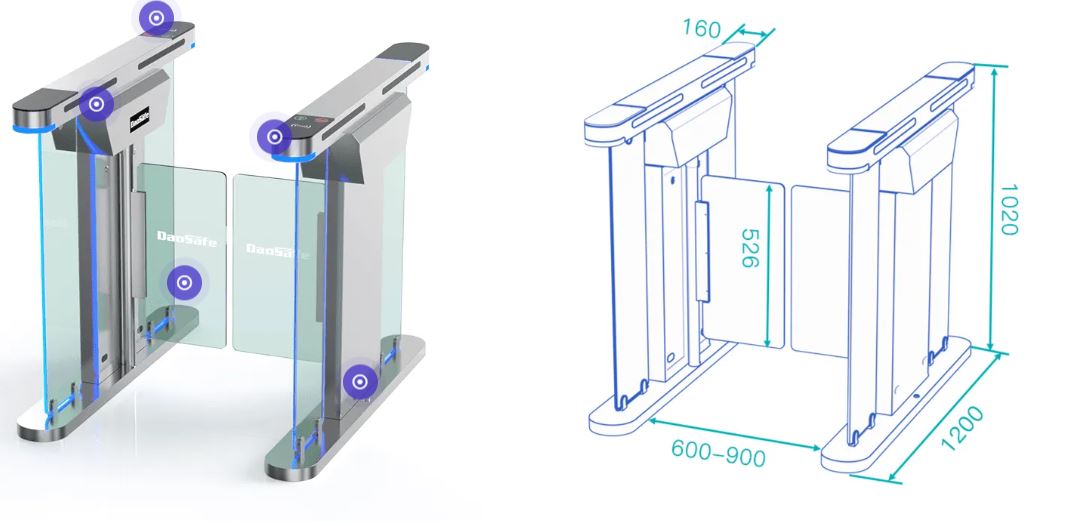

        Dimension: 1200 * 120 * 1020mm

        Weight: 60kg

        Passage Width: 600mm (standard), 900mm (handicap)

        Passing Direction: Single directional / Bi-directional

        MCBF: 10 million

        Power Supply: AC220V/110V, 50/60Hz

        Operation Voltage: 24V DC

        Power Consumption: 40W

        Operation Temperature: -20 °C - 75 °C

        Operation Humidity: 0 ~ 95% (No freeze)

        Working Environment: Indoor / Outdoor

        Flow Rate: 45-55 people per minute

        LED Indicator: Yes

        Infrared Sensor: 6 pairs (standard)

        Emergency: Automatic arm open when power off

        Communication: Dry contact, Relay signal, RS485
