BODY TEMPERATURE DETECTION THERMAL CAMERA
Therm-App® is a lightweight, modular device that clips right onto Android devices and transforms them into powerful, high-resolution thermal imagers. This is a vital tool for fever detection in high-risk areas.
People exhibiting elevated skin temperatures, which may indicate a fever, could then be isolated for further evaluation to determine the cause. Similar quarantine procedures may help minimize the spread of the Covid-19 outbreak.
-
Therm-App® is a lightweight, modular device that clips right onto Android devices and transforms them into powerful, high-resolution thermal imagers. This is a vital tool for fever detection in high-risk areas.
People exhibiting elevated skin temperatures, which may indicate a fever, could then be isolated for further evaluation to determine the cause. Similar quarantine procedures may help minimize the spread of the Covid-19 outbreak.
- Minimal Requirements: Android 8 and above, supporting USB OTG
- Output: Video & Audio (H.264), Snapshot (IR, VIS, Metadata)
- Temperature Scale Range: Auto, Manual
- Zoom: Continuous digital zoom using touchscreen
- Resolution: 384 x 288 pixels (>110,000 pixels )
- Accuracy: /-1°C @ target temperature ranges of 25°- 45° C (@ ambient temp. of 25°C)
- Weight: 123 grams
- Size: 55 x 65 x 40mm
- Power Supply: No battery, 5V over USB OTG cable, power consumption < 0.5W
- Mount/Handle : Standard tripod mount, using 1/4″-20
- Device Attachment: Clip-on for smartphone (5 -10cm span)
- Package includes: Thermal Camera, OTG Cable, Mini Android Single Board Computer, 100-200VAC power cable
opgal datasheetRelated Products

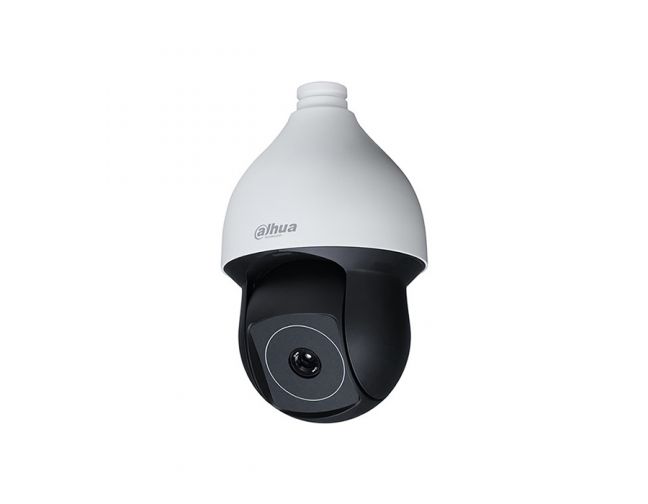

· 336x256 VOx uncooled thermal sensor technology
· Athermalized Lens (thermal), Focus-free
· Support Fire detection & alarm
· Max 240°/s pan speed, 360° endless pan rotation
· Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
· 2/1 alarm in/out
· Micro SD memory, IP66, PoE+...
