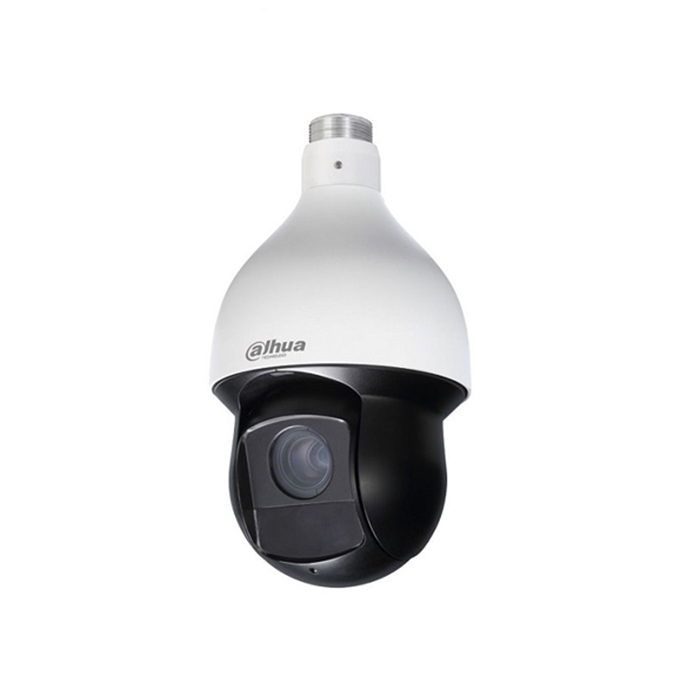

CAMERA PTZ DOME WATER-PROOF 2MP 30x ULTRA-HIGH SPEED IR HDCVI PTZ - DH-SD59230I-HC
Top-of-the-art dome camera with superb 2MP 1080P picture quality, waterproof that makes it ideal for outdoor use and infrared up to 150 meters for perfect viewing in the dark. Its strong point is the movement that makes it special for surveillance of large spaces.
- 30x optical zoom
- Support starlight
- Max. 25/30fps@1080P(1920?1080) & 20/30/50/60fps@720P resolution
- WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
- Max 400°/s pan speed, 360° endless pan rotation
- Control over coaxial cable, long distance real-time transmission
- HD and SD switchable
- Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
- Built-in 2/1 alarm in/out
- Support intelligent 3D positioning with DH-SD protocol
- IR Distance up to 150m
- IP66,OSD
-
Camera
Image Sensor
1/2.8” Exmor R CMOS
Effective Pixels
1920(H) x 1080(V), 2Megapixels
Horizontal Resolution
≥1000TVL
Scanning System
Progressive
Electronic Shutter Speed
1/1 ~ 1/30,000s
Min. Illumination
0.005Lux/F1.6(Color); 0Lux/F1.6(IR on);
S/N Ratio
More than 50dB
Resolution
25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Day/Night
Auto(ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto, ATW, Indoor, Outdoor, Manual
Gain Control
Auto / Manual
Noise Reduction
2D/3D
Privacy Masking
Up to 24 areas
Digital Zoom
16x Lens
Focal Length
4.5mm~135mm (30x Optical zoom)
Max Aperture
F1.6 ~ F5.0
Focus Control
Auto / Manual
FOV-H
H: 67.8°~ 2.7°
Close Focus Distance
100mm ~ 1000mm
PTZ
Pan/Tilt Range
Pan: 0° ~ 360° endless;
Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan:
0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed Pan:
400° /s; Tilt: 300° /s
