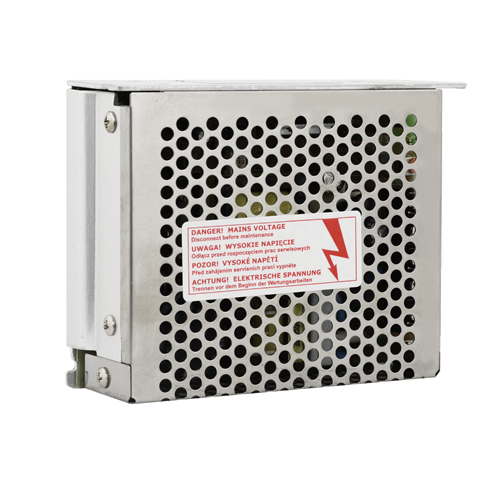

POWER SUPPLY PS 12V/2A PS-251220
A quality power supply at affordable price, for cameras, recorders and more
Supply voltage: 85÷264V AC
Current consumption: 0,18A@230VAC max.
Supply power: 25W max.
Efficiency: 74%
Output voltage: 12V DC
Output current: tAMB<30°C 2A - see graph 1.
Output current: tAMB=40°C 1,4A - see graph 1.
-
Supply voltage
85÷264V ACCurrent consumption
0,18A@230VAC max.
Supply power
25W max.
Efficiency
74%
Output voltage
12V DC
Output current
tAMB<30°C 2A - see graph 1.Output current
tAMB=40°C 1,4A - see graph 1.
Voltage adjustment range
12V ÷ 15V DC
Ripple voltage100mV p-p max.
Short-circuit protection
SCP electronic, automatic recovery
Overload protection
OLP 105-150% of power supply, automatic recovery
Surge protection varistors
Overvoltage protection
OVP >16V (automatic return)
Optical signalisation green LED – presence of DC voltage
Operation conditions
2-nd enviromental class, temperature: -10 oC÷40 oCrelative humidity 20%...90%, without condensation
Dimensions L=110, W=78, H=36 [+/- 2mm]
Net/gross weight
0,22kg / 0,24kg
Protection class
PN-EN 60950-1:2007 I (first) – requires a protective conductor (PE)
Connectors power-supply:?0,63-2,50 (AWG 22-10)
outputs:
?0,63-2,50 (AWG 22-10)
