SWITCH PoE MIDSPAN PFT1100 TAMGT1GT-30
Quality switch with LEDs for power and operation
· Supports IEEE802.3af, IEEE802.3at standard
· Conform IEEE802.3, IEEE802.3u and IEEE802.3ab standards
· Wide temperature design: -10°C~55°C
-
Model
TAM1GT1GT-30Ethernet Port
1*10/100/1000 Base-T1*10/100/1000 Base-T( PoE power supply)
PoE Power Consumption
Power output≤30WPoE Protocol IEEE802.3af, IEEE802.3at
LED Indicator
PSE: Indicates the device is delivering power to thePD.(Green)PWR: Indicates the device is working properly.(Green)
Application Humidity
10%~90%
Power
AC100~240V 50/60Hz
Working Temperature
-10°C~55°C
Weight
250g
Dimension(W×D×H)
132.3mm×60mm×33mm
PFT1100_TAMGT1GT-30Related Products
Manufacturer: DAHUA
Exceptional BOX camera with top video quality 4MP, IR for better viewing in the dark, water-proof image analysis techniques (IP67) and IK10 antivandal protection.
· 1/3" 4Megapixel progressive scan CMOS
· H.264&H.265 Triple-stream encoding
· 25/30fps@4M(2688×1520)
· Smart Detection supported
· WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2/1 Alarm in/out, 1/1 audio in/out(Built-in Mic)
· Auto back focus(ABF)
· Micro SD memory, PoE...
· 1/3" 4Megapixel progressive scan CMOS
· H.264&H.265 Triple-stream encoding
· 25/30fps@4M(2688×1520)
· Smart Detection supported
· WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2/1 Alarm in/out, 1/1 audio in/out(Built-in Mic)
· Auto back focus(ABF)
· Micro SD memory, PoE...
Manufacturer: DAHUA

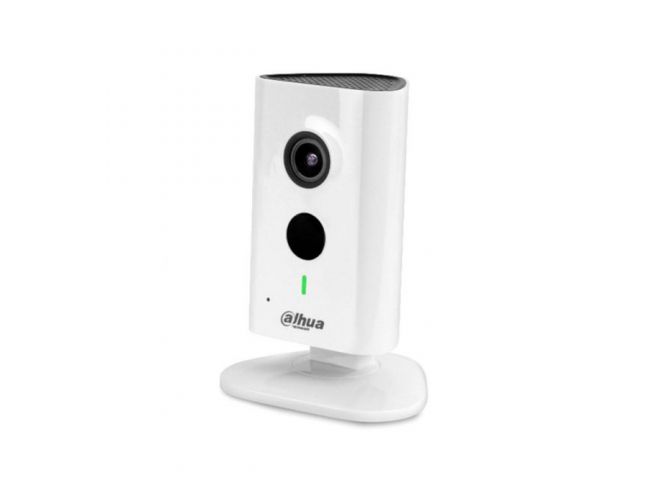

Excellent WiFi detection camera, with superb 4MP video quality
- 1/3” 4Megapixel progressive CMOS
- 4MP(2688 x 1520)
- Video Compression : H.265/H.264
- Motion Detection
- Human Detection
- Wi-Fi: IEEE802.11b/g/n, 50m open field
- Micro SD Slot (up to 128GB)...
- 1/3” 4Megapixel progressive CMOS
- 4MP(2688 x 1520)
- Video Compression : H.265/H.264
- Motion Detection
- Human Detection
- Wi-Fi: IEEE802.11b/g/n, 50m open field
- Micro SD Slot (up to 128GB)...
Manufacturer: DAHUA

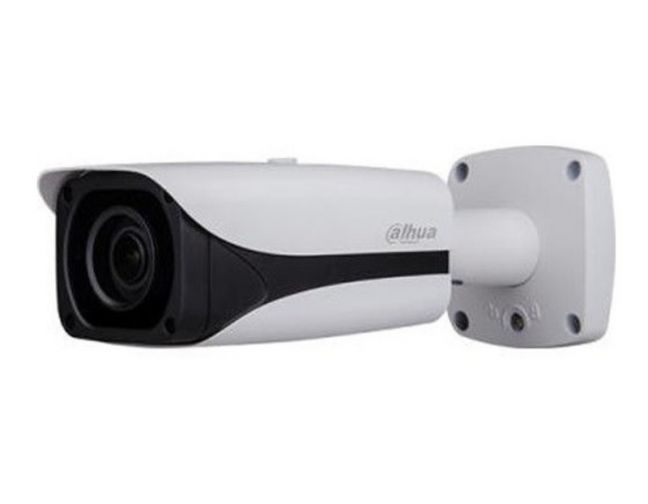

Unique face-recognition camera, 2MP 1080P high quality video, antivandal, waterproof, with IR for better viewing in the dark.
