VIDEO RECORDER 32 CHANNELS PENTA-BIRD 1080P DIGITAL XVR5232AN-X
Excellent 32-channel network recorder, supported 4MP / 4K image quality and H.265 video compression. It also supports image quality up to 6MP for each channel. Ideal where detail is needed.
H.265+/H.265 dual-stream video compression
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 32 channels IP camera inputs, each channel up to
6MP; Max 128Mbps Incoming Bandwidth
Smart Search and Intelligent Video System
-
System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Video and Audio
Analog Camera Input
32 Channel, BNC
HDCVI Camera
4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera
4MP, 1080P@25/30, 720P@25/30fps
TVI Camera
4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera
PAL/NTSC
IP Camera Input
32 Channel, each channel up to 6MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA
Recording
Compression
H.265+/H.265/H.264+/H.264
Resolution
4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/
D1/CIF (1~25/30fps)
Sub steram: D1/CIF(1~15fps)
Bit Rate
32Kbps ~ 6144Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-
record: 10 ~ 300 sec
Audio Compression
AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate
8KHz, 16 bit Per Channel
Audio Bit Rate
64Kbps Per Channel
Display
Interface
1 HDMI, 1 VGA, 1 TV
Resolution
19
20×1080, 1280×
1024, 1280×720
Multi-screen Display
1/4/8/9/16/25/36
OSD
Camera title, Time, Video loss, Camera lock, Motion detection,
Recording
Network
Interface
1 RJ-45 Port (1000M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G,
U P n P, R T S P, U D P,
SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,
P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.
XVR5232AN-XRelated Products
> Max 30fps@1080P
> HD and SD output switchable
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. IR length 20m, Smart IR
> IP67, DC12V...
The camera offers broad possibilities for Analytics, from Face Detection to the outstanding DDA Analytics
(Detect, Distinguish, Alert), which can perform object recognition and object counting. With various
detection rules and triggers, the BX-341IPEN camera will help the user end false alarms.
Lens is not included....

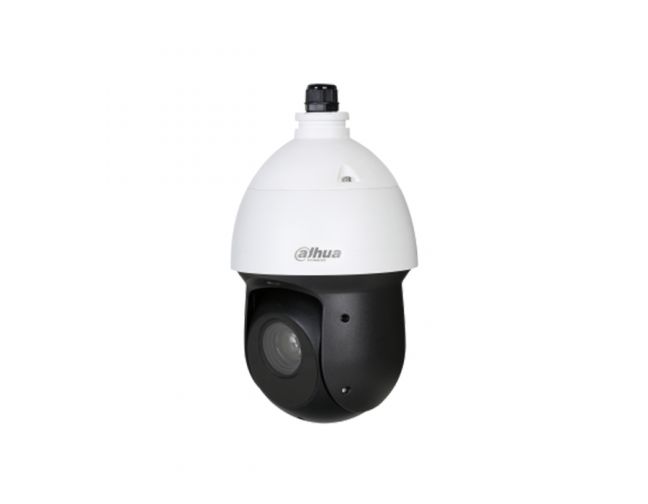

1/3 4Megapixel CMOS
