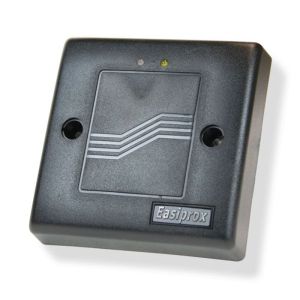

ΚΑΡΤΑΝΑΝΑΓΝΩΣΤΗΣ ΕΠΑΓΩΓΙΚΟΣ ΕΞΩΤΕΡΙΚΟΣ EASIPROX

Επίτοιχος αναγνώστης επαγωγικών καρτών τύπου ΕΜ, πλήρως αξιόπιστος, διαθέτει 2 λυχνίες και βομβητή, αντιβανδαλιστικός και αδιάβροχος κατάλληλος για εξωτερική τοποθέτηση, παίζει και αυτόνομα, EASIPROX

Operating Voltage:
12 Vdc or ac .

Current Draw:
Average 45mA , Peak 70 mA @ 12 V DC Input: request-to-exit, read head. Relays Electric Current: 3A MAX @24Vdc .

Memory Volume:
2000 Proximity cards/tokens .

Proximity Cards:
125 KHz, EM-400x, 64-bit standard R/O

Read Range :
10~15 cm (Depending on local installation Conditions)

Case Material:
ABS UL94V0

Operating Temperature:
-20~+70C Ambient

Humidity:
5~95% relative humidity non-condensing

Visual Signals:
Yellow: Power on
Green: Add Tags
Red: Delete Tags
Yellow/Red: Clear Memory
Yellow(flashing): strike mode and timer adjust

EPROM:
Non-volatile memory, System will retain all programs and codes after a total loss of power. Output: Dual relay, N.O. / N.C. / Com.

Output (free voltage contact) Relocking Timer:
0.7~42 seconds adjustable

Colour:
Dark gray

Dimension:
(L)86*(W)86*(D)21 mm (for Common Europe single-gang box sized)
