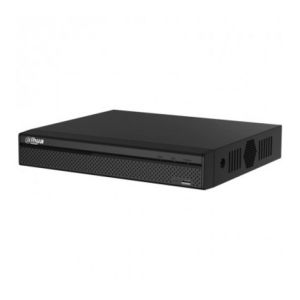

ΚΑΤΑΓΡΑΦΙΚΟ 32 ΚΑΝΑΛΙΩΝ PENTA-BIRD 1080P DIGITAL XVR5232AN-X
Εξαιρετικό δικτυακό καταγραφικό 32 καναλιών, υποστηριζόμενο ποιότητα εικόνας 4MP/4K και συμπίεση βίντεο H.265. Υποστηρίζει επιπλέον, ποιότητα εικόνας μέχρι και 6MP για κάθε κανάλι. Ιδανικό εκεί οπου η λεπτομέρεια είναι απαραίτητη.
· H.265+/H.265 dual-stream video compression
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 32 channels IP camera inputs, each channel up to
6MP; Max 128Mbps Incoming Bandwidth
· Smart Search and Intelligent Video System
-
System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Video and Audio
Analog Camera Input
32 Channel, BNC
HDCVI Camera
4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera
4MP, 1080P@25/30, 720P@25/30fps
TVI Camera
4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera
PAL/NTSC
IP Camera Input
32 Channel, each channel up to 6MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA
Recording
Compression
H.265+/H.265/H.264+/H.264
Resolution
4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/
D1/CIF (1~25/30fps)
Sub steram: D1/CIF(1~15fps)
Bit Rate
32Kbps ~ 6144Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-
record: 10 ~ 300 sec
Audio Compression
AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate
8KHz, 16 bit Per Channel
Audio Bit Rate
64Kbps Per Channel
Display
Interface
1 HDMI, 1 VGA, 1 TV
Resolution
19
20×1080, 1280×
1024, 1280×720
Multi-screen Display
1/4/8/9/16/25/36
OSD
Camera title, Time, Video loss, Camera lock, Motion detection,
Recording
Network
Interface
1 RJ-45 Port (1000M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G,
U P n P, R T S P, U D P,
SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,
P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.
