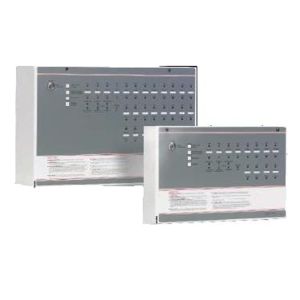

ΠΙΝΑΚΑΣ ΠΥΡΑΝΙΧΝΕΥΣΗΣ 28 ΖΩΝΩΝ FF 528
Αξιόπιστος πίνακας πυρανίχνευσης 28 ζωνών συμβατικής τεχνολογίας, μέχρι 20 ανιχνευτές ανα ζώνη, έξοδος fire – fault relay (mfpx expansion loom) 24VDC, εντός μεταλλικού ερμαρίου. C-TEC, FF 528 (Compliant to BS 5839 Part 4)
-
- Fully compliant with BS5839 Part 4.
- Microprocessor based design.
- Robust metal lid and metal back box.
- Attractive easy-to-clean polycarbonate front label.
- Four sounder circuits and head out (detector removed) fault indication provided as standard.
- Expandable from 4 to 28 zones in 4 zone steps.
- Heavy-duty base connections.
- Ultra-bright, long-life LED indicators.
- Built-in 24V power supply and battery charger.
- End of line units included (one per zone).
- Compatibility with virtually all known conventional smoke and heat detector ranges.
- True three wire operation of sounder and detector circuits (Ov is common) for considerable cost savings on installation.
- Separate indication of open circuit fault, short circuit fault, head out fault, sounder fault and battery/power supply fault.
- Non-latching ‘class change’ sounder input, latching fire and non-latching fault outputs (available via optional MFPX expansion loom).
- Fault buzzer mute facility.
- Space available for the rated capacity of VRLA batteries.
- Short circuit = fire facility (pre-1980 BS, no resistors in call points), selectable on a zone by zone basis for retro-installations.
- Non-latching zones facility for cross connection to other panels.
- True battery monitoring circuit.
- Wide range of engineer facilities including one man detector test, sounder walk test, sounder isolate, sounder delay and auxiliary isolate.
- Easy to follow installation instructions and log book.
- Up to eight two-wire repeaters with full external control (except isolate) per system (requires one FF596T Repeater Transmitter PCB fitted at the main panel).
- Multilingual variants available (subject to quantities)
