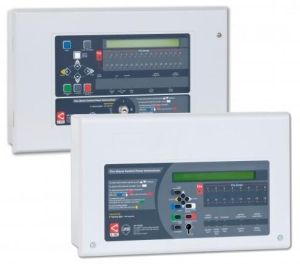

ΕΠΑΝΑΛΗΠΤΙΚΟΣ ΠΙΝΑΚΑΣ 32 ΖΟΝΩΝ - XFP510

-Full compatibility with Apollo’s XP95/Discovery and Hochiki’s ESP protocols
-The ability to interconnect up to eight XFP main panels (any variant) onto a two wire RS485 network. Alternatively, up to eight XFP repeaters can be connected to a non-networked XFP main panel 4Combined keypad / keyswitch entry to Access Levels 2 & 3
-Two independently programmable conventional sounder circuits
-Two programmable inputs
-A fault output relay and three programmable relay outputs with voltage free changeover contacts
-Three zone dependency functions (A, B & C to EN54-2 Clause 7.12)
-A day/night (building occupied/unoccupied) function
-An investigation delay period function
-Individual sensitivity settings for each device
-A phased evacuation and delays to outputs facility (to EN54-2 Clause 7.11)
-An alarm counter that records the number of times the panel has been in an alarm state (to EN54-2 Clause 7.13)
-Powerful short circuit protected loop drivers, capable of supporting up to
-0 loop powered 10mA sounders per loop
-An integral EN54-4/A2 switch mode PSU rated @ 185-260V a.c. 50/60Hz (1.4A on a 16 zone panel, 3A on a 32 zone panel)
-Earth fault monitoring
-An easy to read, 80 character back-lit display 440 characters of custom text per device
-999 event monitoring
-Comprehensive test facilities (to EN54-2 Clause 10) and a wide range of maintenance & commissioning functions including auto-learn loops, monitor a point, test outputs, one man walk test and loop continuity test
-An intuitive Windows based upload-download PC program that allows the system to be programmed quickly and easily
-Full compatibility with C-TEC’s Hush Button fire alarm solution for houses of multiple occupation 4Optional flush-mounting stainless steel enclosures available (for 32 zone XFP panels only)
