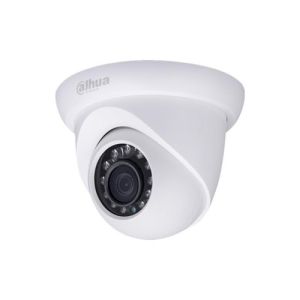

ΚΑΜΕΡΑ ΘΟΛΟΥ DAHUA IPC-HDW1230S-0280 (IP)
Εξαιρετική κάμερα θόλου 2MP με σύστημα υπερύθρων για καλύτερη θέαση στο σκοτάδι.
2MP IR Eyeball Network Camera
> 1/2.7” 2Megapixel progressive CMOS
> H.265 & H.264 dual-stream encoding
> 25/30fps@1080P(1920x1080)
> DWDR, Day/Night(ICR), 3DNR, HLC, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6mm optional)
> Max IR LEDs Length 30m
> IP67, PoE
-
Camera
Image Sensor
1/2.7” 2Megapixel progresive CMOS
Effective Pixels
1920(H) x1080(V)
RAM/ROM
256MB/128MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
12
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
2.8 mm (3.6 mm optional)
Max. Aperture
F2.0/F2.0
Angle of View
H:104°/92°,V:55°/50°
Focus Control
Fixed
Close Focus Distance
0.6m(0.9m)PTZ
Pan/Tilt Range
Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°Intelligence
Event Trigger
Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
Tripwire, Intrusion
Video
Compression
H.265/H.264H/MJPEG(Sub Stream)
IPC-HDW1230S-0280Σχετιζόμενα Προϊόντα
· H.264+/H.264 codec decoding
· Max 80Mbps incoming bandwidth
· Up to 6Mp resolution preview&playback
· HDMI/VGA simultaneous video output
· Support IPC UPnP, 4PoE ports
· 3D intelligent positioning with Dahua PTZ camera...
· Support passive PoE cascade power supply and Ethernet
data exchange
· Support IEEE 802.3af/at standard power supply IP Camera
· Cooperate with High PoE Midspan (PFT1200), able to
cascade level 2 PoE Extender, connect to 3 IPC (power
consumption <=8W), max transmission distance 300m
· 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M
supply power for IP Cam; 1*RJ45 10/100M supply power for
the next extender
· Installation mode: junction box internal mounting, DIN rail
mounting...
· Layer two commercial switch
· Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
· MAC auto learning, aging, MAC address capacity is 2K
· Supports MDI/MDIX self-adaptation
· Support PoE, PoE+, Hi-PoE
· Adopts metal enclosure...
